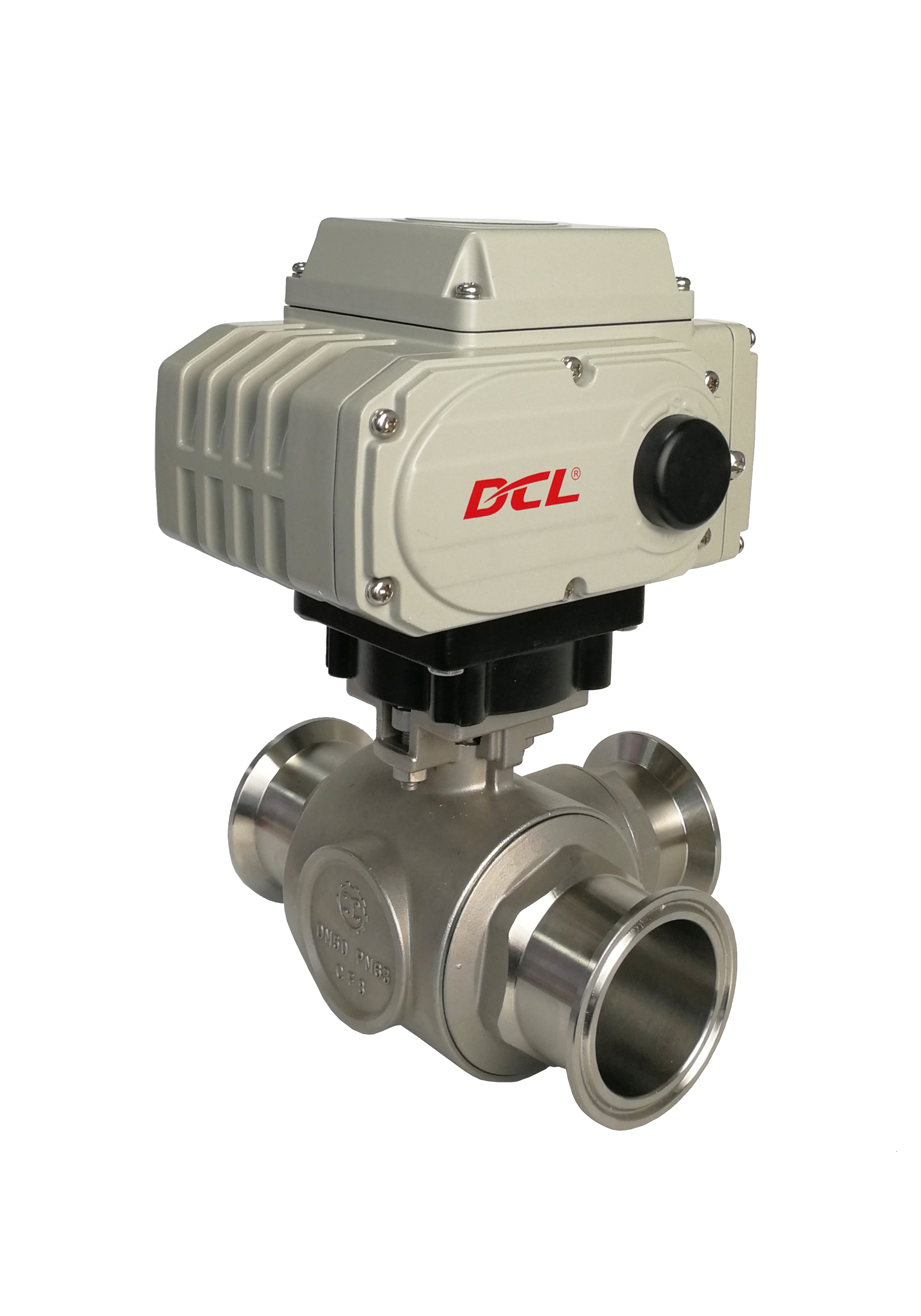

RoHS 3.0 CSA 90° 360° IP67 Compact Smart Electric Actuator

DCL-05E~250E parameters.pdf

• Quarter turn with mechanical limits
• Integral design of Motor/control box/housing to make whole actuator compact
• Over torque protection by torque test function of smart full potted controller
• High performance EMC with EFT, ESD and high voltage surge tested for control pack
• Heavy duty motor with thermal overload protection
• Hard high pressure die cast aluminum housing with weather proof IP67 and NEMA 4X
• Valve position indicator/flat indicator or convex indicator available
• Manual override with wrench or handwheel
• CSA Certification per UL and CSA standard/CE marked/RoHS 3.0 passed

The DCL smart modulating type electric actuator is equipped with an Electric Positioning System (EPS) positioner. The output angle of the drive is proportional to the input control signal of 4–20 mA, 2–10 V, or 1–5 V. The actuator’s intelligent controller continuously monitors the motor current. When the motor stalls, the current rises sharply, and the controller automatically cuts off the motor power three seconds after detecting the surge. This electronic over-torque protection provides more precise and reliable protection than conventional mechanical systems.

Each actuator is rigorously tested and certified by CSA in accordance with UL and CSA standards. The duty cycle exceeds 70% across all series, ensuring long-term durability and performance stability. The EPS system is self-calibrating, effectively eliminating “hunting" and providing a standard output position feedback signal for accurate control and monitoring.
